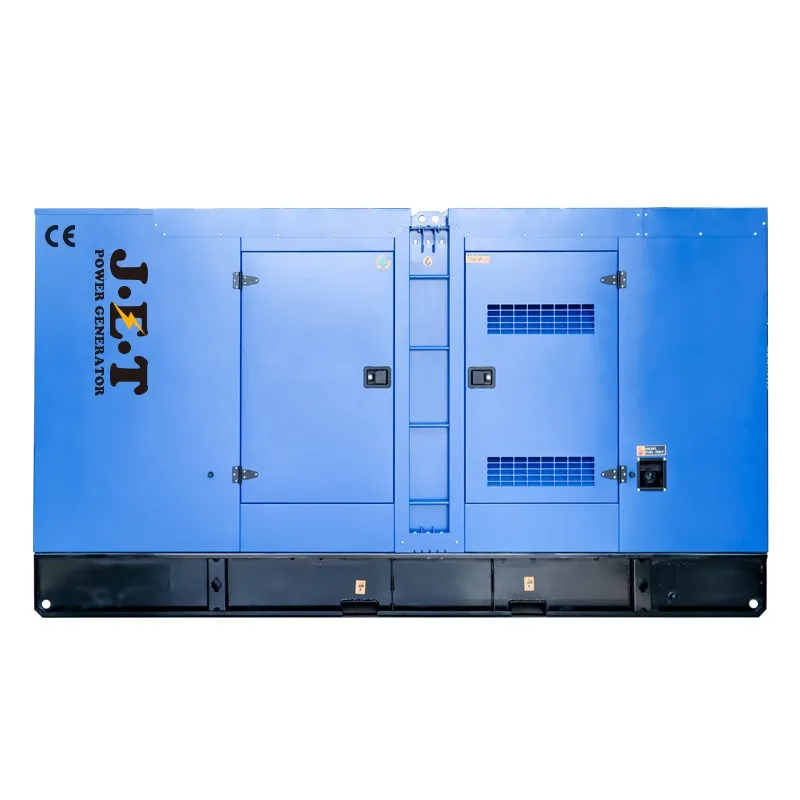

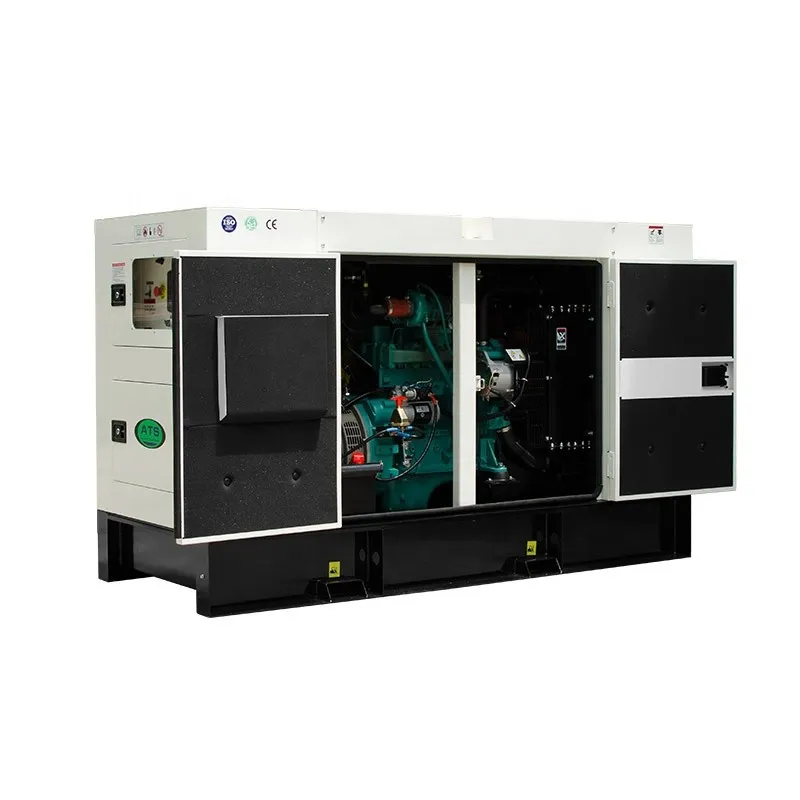

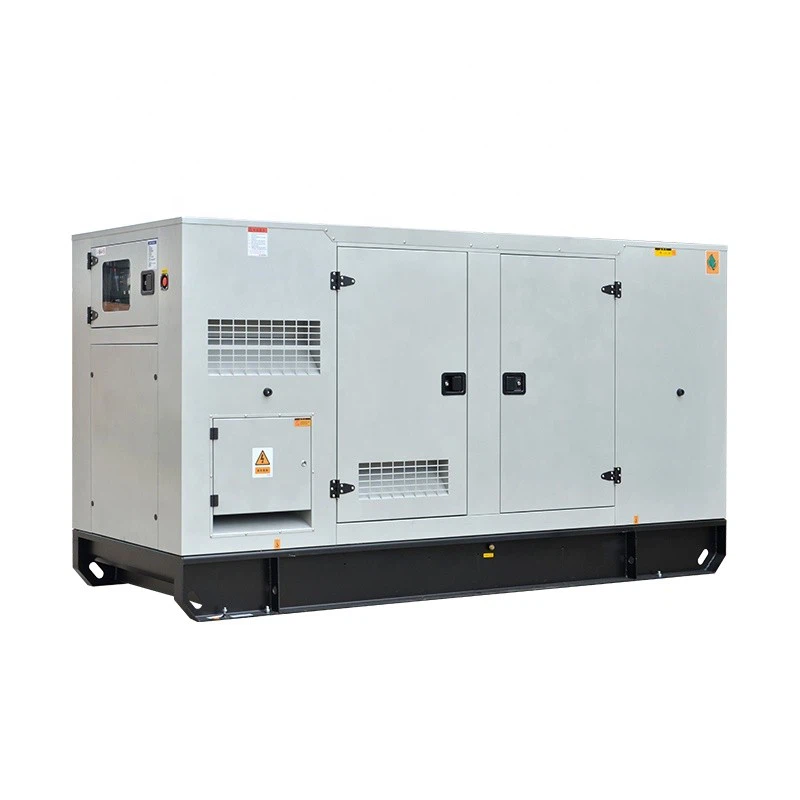

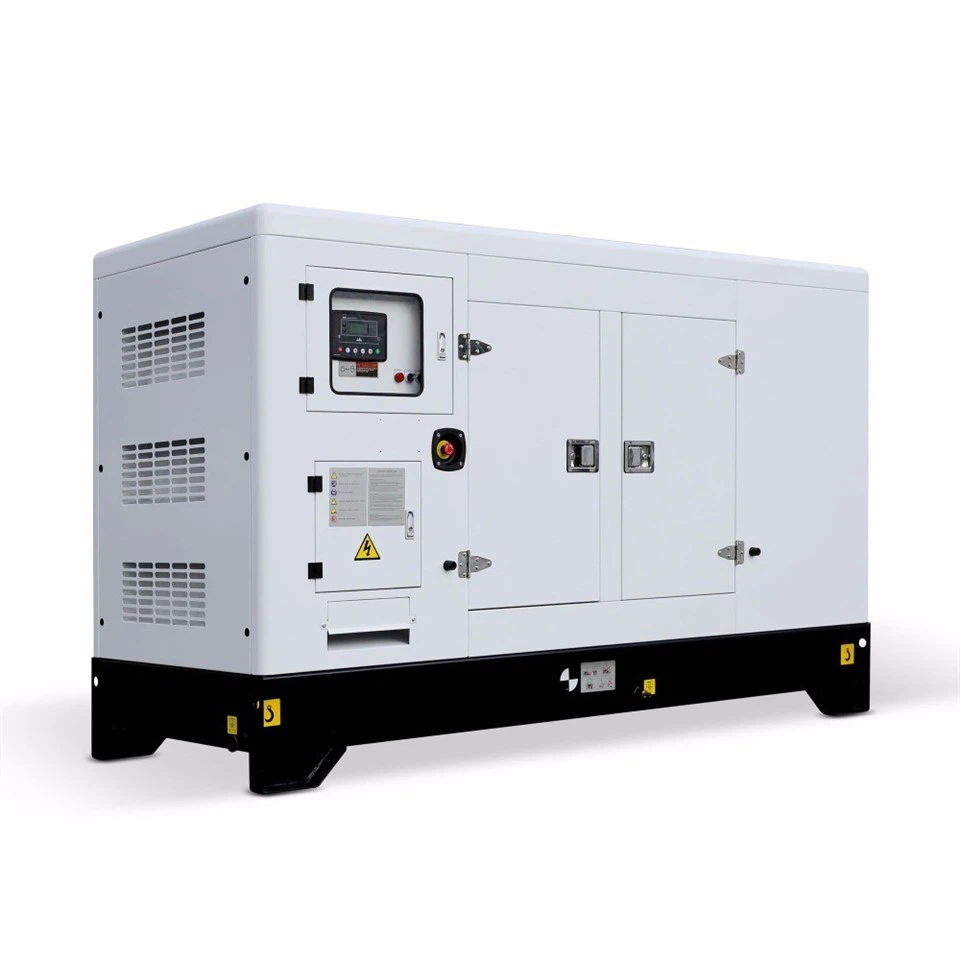

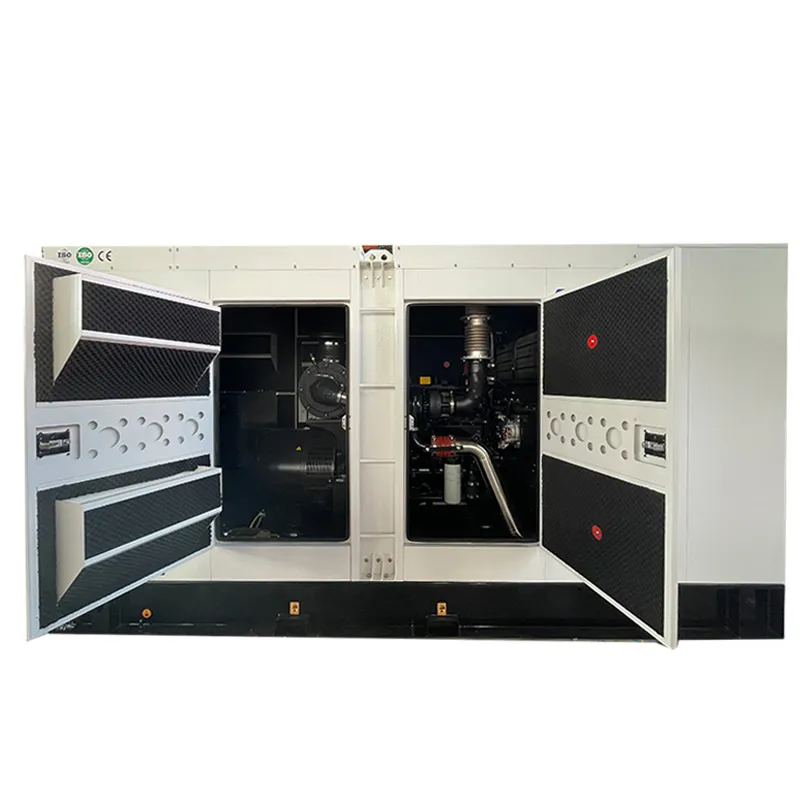

Low Noise Diesel Generator

Low Noise Diesel Generator is a diesel-powered generator set equipped with a soundproof canopy and noise reduction system.

Send Inquiry

Product Introduction

Introduction

Low Noise Diesel Generator is a diesel-powered generator set equipped with a soundproof canopy and noise reduction system.

Technical Specification

Item	Specification
Generator Type	Low Noise Diesel Generator
Power Range	20 kW – 200 kW
Operating Mode	Prime / Standby
Frequency	50Hz / 60Hz
Voltage	380V / 400V / 415V (customizable)
Phase	Three Phase
Cooling System	Water-cooled / Air-cooled options
Enclosure	Sound-attenuated canopy
Control System	Digital intelligent controller
Fuel Type	Diesel

Key Features

Stable Operation

Reinforced frame with vibration isolation keeps performance stable under continuous industrial load.

Low Noise Performance

Labyrinth air intake, heavy-duty exhaust silencer, and rockwool insulation reduce noise for urban and sensitive sites.

Easy Maintenance

Wide access doors and external fuel port simplify daily service and reduce downtime on site.

Long Service Life

Galvanized steel canopy and 304 stainless steel hardware improve corrosion resistance in outdoor environments.

Easy Transport

Forklift pockets and lifting eye allow safe handling and fast relocation on job sites.

Customization Options

Engine Brands：Cummins / Perkins / Volvo / Deutz / Weichai optional.

Silent Level：Standard silent, super silent, or container-type ultra-low noise design.

Control System：ATS automatic switching, digital panel, and remote monitoring available.

Installation Type：Fixed type or trailer-mounted mobile solution.

Protection Design：Weatherproof, dustproof, and anti-corrosion configurations for harsh environments.

System Expansion：Parallel operation and multi-unit synchronization available for large power demands.

Our customers

Application

Healthcare & Labs: Silent backup power for hospitals and laboratories.

Commercial Buildings: Reliable power for hotels, malls, and apartments.

Data Centers & Telecom: Continuous, low-noise 24/7 power supply.

Events & Media: Stable power for filming, broadcasting, and outdoor events.

Application scenarios001

Certification

Manufactured under ISO 9001, ISO 14001, and ISO 45001 certified systems and CE compliance to ensure consistent quality, safety, and environmental responsibility.

Certificates001

Packaging shipping001

FAQ

Q: How much noise reduction can this generator achieve?

A: Typically 15–25 dB lower than open-frame generators, depending on power output and enclosure type.

Q: Can it run continuously for 24 hours?

A: Yes. It is designed for continuous industrial operation, provided routine maintenance is followed.

Q: Can power output and voltage be customized?

A: Yes. Voltage, frequency, and power output can be configured to meet different country standards and project requirements.

Q: What is the delivery time for OEM or customized orders?

A: Standard models: 7–10 days. Customized units: typically 15–20 days, depending on configuration.

Q: Can the generator support automatic start during power failure?

A: Yes. An ATS (Automatic Transfer Switch) can be integrated for seamless backup power switching.
