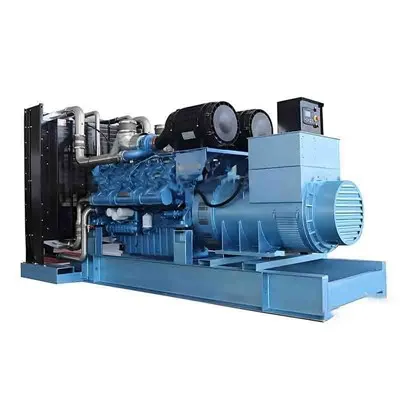

11kv Diesel Generator

11kv Diesel Generator delivers direct high-voltage output, eliminating step-up transformers to minimize transmission heat loss and infrastructure costs for large-scale industrial power grids.

Send Inquiry

Product Introduction

Introduction

11kv Diesel Generator delivers direct high-voltage output, eliminating step-up transformers to minimize transmission heat loss and infrastructure costs for large-scale industrial power grids.

Technical Specification

Parameter	Specification
Rated Voltage	11 kV
Power Output	500–1000 kW
Frequency	50/60 Hz
Phase	Three-phase
Engine Type	Diesel engine, liquid-cooled
Fuel Tank	1000–2000 liters
Duty Type	Prime / Continuous
Control	Digital control panel, AMF optional

Key Features

Lower Fuel Cost Per kWh

Common rail injection keeps fuel consumption ≤195 g/kWh, reducing long-term operating cost.

Supports Parallel Power Expansion

Multiple units can run together for higher capacity without complex setup.

Remote Monitoring Ready

RS485 and Ethernet allow real-time monitoring of key operating data.

Global Emission Compliance

Meets EPA Tier 2/3 or EU Stage V requirements for international projects.

No Partial Discharge Risk

VPI insulation process removes internal air gaps, preventing partial discharge and insulation failure.

Customization Services

Engine：Cummins / Perkins / Volvo / Weichai optional.

Alternator：Stamford / Leroy Somer / Marathon for stable output.

Enclosure：Open / silent / containerized design.

Control System：Deepsea or ComAp monitoring system.

Fuel Tank：Standard or extended runtime options.

Parallel System：Multi-set synchronization available.

Our customers

Applications

Data Centers: Reliable Tier III and Tier IV backup power.

Mining & Oil Fields: High-torque performance for heavy machinery.

Utility Grids: Peak-shaving and remote localized power.

Large Infrastructure: Airports, seaports, and metropolitan hospitals.

Application scenarios001

Manufacturing & Quality Control

Full Load Tested

Each unit is tested from 0% to 110% load before shipment, with test report provided.

Proven Core Components

Equipped with Cummins, Perkins, or Mitsubishi engines for reliable performance and global service support.

Corrosion Resistant Structure

CNC-cut and powder-coated frame with 1000-hour salt spray resistance, suitable for harsh environments.

Workshop equipment001

Certificates001

product-1060-890

FAQ

Q: What's the difference between prime and standby generator ratings?

A: Prime power units are designed for continuous operation in industrial use, while standby units are intended for emergency backup during power outages.

Q: Is this 11kV generator suitable for international export projects?

A: Yes. The unit complies with CE and ISO standards and can be configured for different regional voltage and frequency requirements.

Q: What is the typical production and delivery time?

A: Standard models can be shipped quickly from stock. Custom configurations usually require 7–10 working days for production, with delivery time depending on destination.

Q: What maintenance is required during operation?

A: Basic routine checks include oil level, coolant, and filter condition. We also provide technical support to assist with maintenance and troubleshooting when needed.

Q: What is your minimum order quantity (MOQ)?

A: MOQ is 1 unit. We support both single-unit orders and bulk procurement for large projects.
